Detector wiring harness

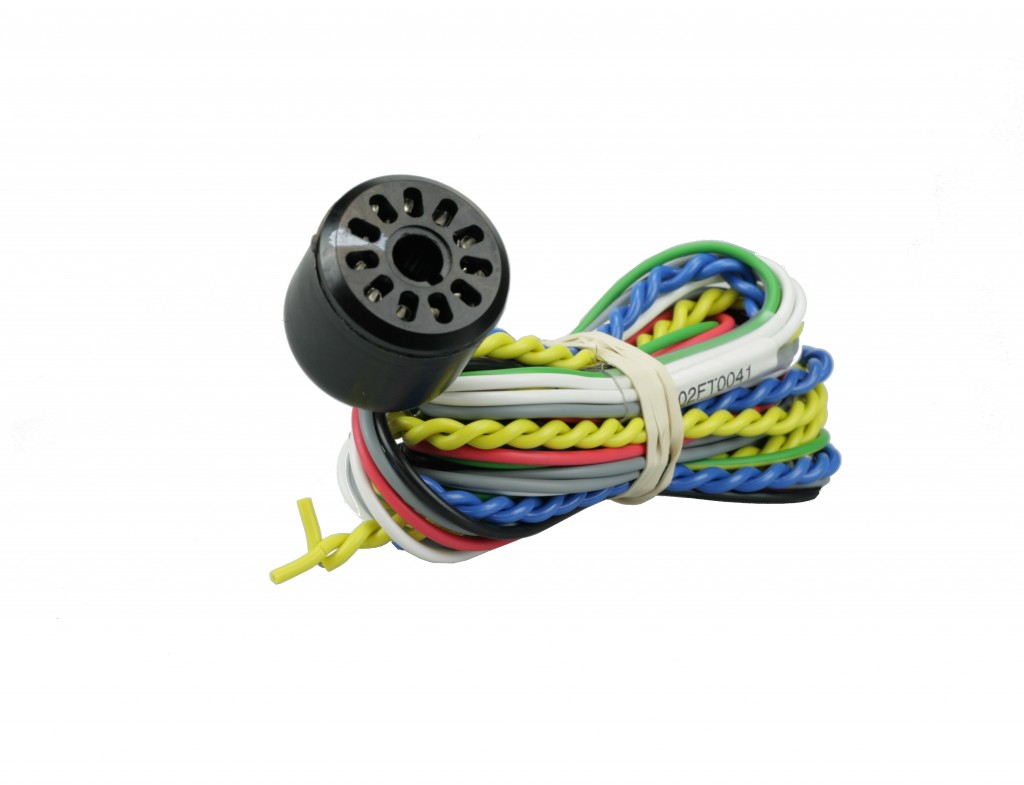

A 2 metre wiring harness to connect equipment wiring to the Nortech range of “plug-in” modules including vehicle detectors, logic controllers and counters. One end is terminated in an 11-pin plug and the other end is free.

Separate part numbers are required for single and dual channel vehicle detectors.

Product codes

301FT0041 - PD130 wiring harness

302FT0041 - PD230 wiring harness

11-pin connector wiring – 301FT0041singleharness
pin –  colour / designation

1 –  Live / RED 230V AC 50/60 Hz
2 – Neutral / BLACK OR 12 – 24V AC/DC
3 – Pulse Relay / GREY N/O contact
4 – Pulse Relay VIOLET Common contact
5 – Presence / YELLOW Normally Open
6 – Presence / BROWN Common contact
7 – Loop / BLUE
8 – Loop / BLUE
9 – Earth / GREEN & YELLOW
10 – Presence  / PINK Normally Closed
11 – Pulse Relay / WHITE Normally Closed



11-pin connector wiring – 302FT0041dualsharness
pin – colour / designation

1 –  Live / RED 230V AC 50/60 Hz
2 – Neutral / BLACK OR 12 – 24V AC/DC
3 – Loop / CH 1 BLUE
4 – Loop / CH 1 BLUE
5 – Loop / CH 2 YELLOW
6 – Loop /CH 2 YELLOW
7 – Chan 2 / GREY Normally Open
8 – Chan 2 / GREY Common contact
9 – Earth / GREEN & YELLOW
10 – Chan 1 / WHITE Normally Open
11 – Chan 1  / WHITE Common contact
