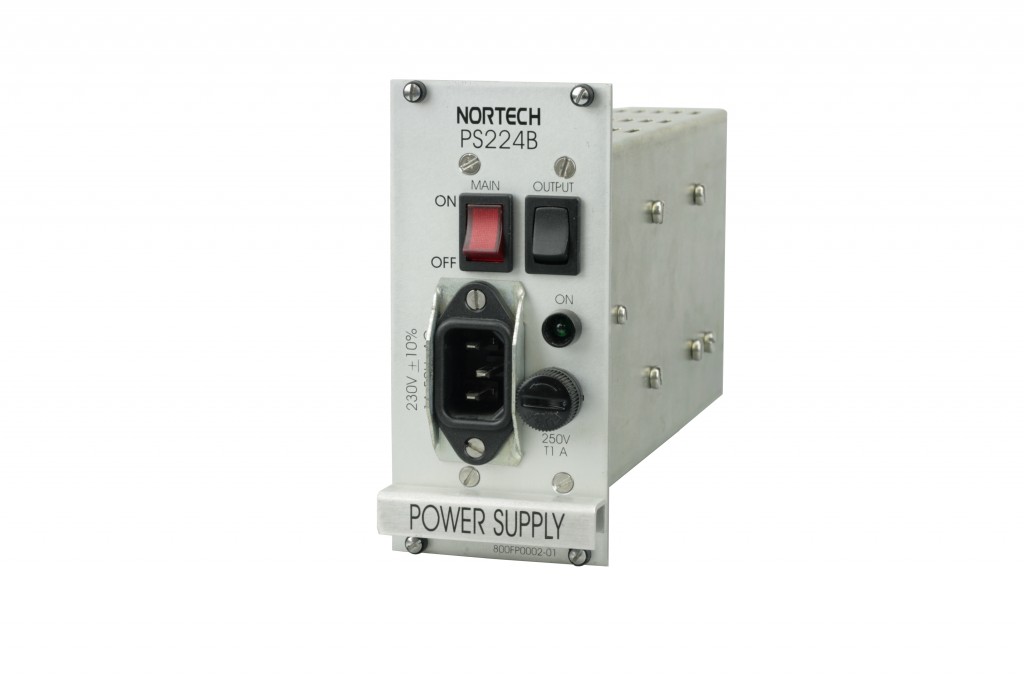

The Nortech PS224B uninterruptible Power Supply employs a universal switch mode power pack that provides power to the circuitry from the primary input supply. This input supply is fused and isolated from the system and operates at 230V AC (±10%). The power supply provides a charging system to maintain a small lead acid battery, which will continue to supply power to the Rack in the event of the primary input supply being lost. This uninterruptible power supply has a dual output arrangement to deliver the required power to the system. These outputs are fully protected against short circuit conditions by current limiting.

Features:

• Surge Suppression and Line Filtering
• Integral Charging System
• Battery Management
• Battery Start Feature
• Wide Input Supply Range
• Output Current Limiting
• System Battery Monitoring
• Energy Efficient switch-mode operation

Product codes

800FT0002 PS224B Power Supply 230V AC
