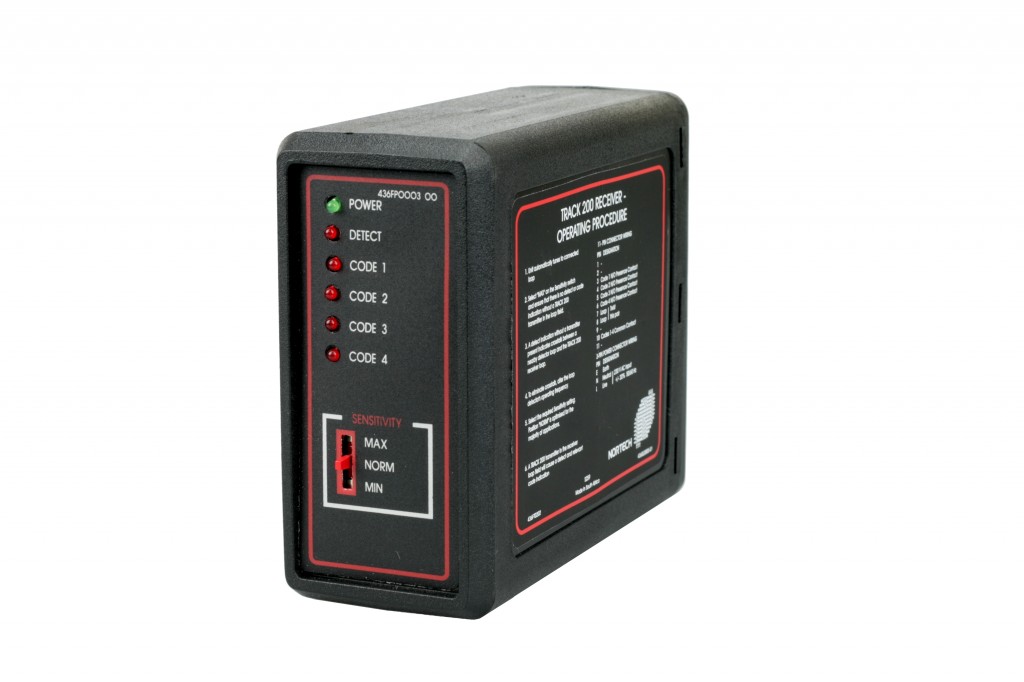

Track 200 Receiver

The TRACK system uses a conventional inductive loop as an in-ground antenna and a specialised receiver to provide an advanced vehicle identification system up to 120km/h. Track 200 allows for the broadcast of 4 codes from the vehicle. These are useful for providing “state” information (ie “full/empty” or “inbound/outbound/out-of-service”) to a vehicle priority or process management system.

Applications:

  • Traffic priority applications such as emergency vehicle or public transport priority at traffic intersections, tolls, rising bollards etc
  • Selective access control applications
  • Industrial automation applications such as automation of mining or loading processes

Product codes

436FT0202 - T200 Receiver - 240V AC

Front Panel Indicators: Green LED – Power on/ Red LED – Transmitter detected / 4 x Red LEDs – Code 1  to  4  detected
Front Panel controls: Sensitivity selector  MIN – MED – MAX
Demodulation method: Phase locked loop demodulator
Transient protection:  Input isolation transformer & diode clamping
Antenna: Standard Induction detector loop 10 μH to 1000μH (Does not “share” loop with an inductive vehicle detector)
Loop Feeder: Maximum 300 metres with twisted pair cable, 0.5mm square cross section, copper, multi strand
Output Relays: N/O Relay Contact per code plus common. 6A Rated at 230V AC
Output Presence duration: Outputs are maintained as long as transmitter is present. 1-second turn-off delay to prevent spurious signals as the transmitter traverses nulls
Power: 230 / 240 V AC Mains input 2.5 VA max
Size of Housing: 113 mm (H) X 56mm (W) X 132mm (L) – excluding mating connectors
Mounting: Free standing shelf mount
Connector: 11 Pin loop detector format connector  &  3 Pin VDE plug for power
Operating Temperature:  -10°C to +70°C
