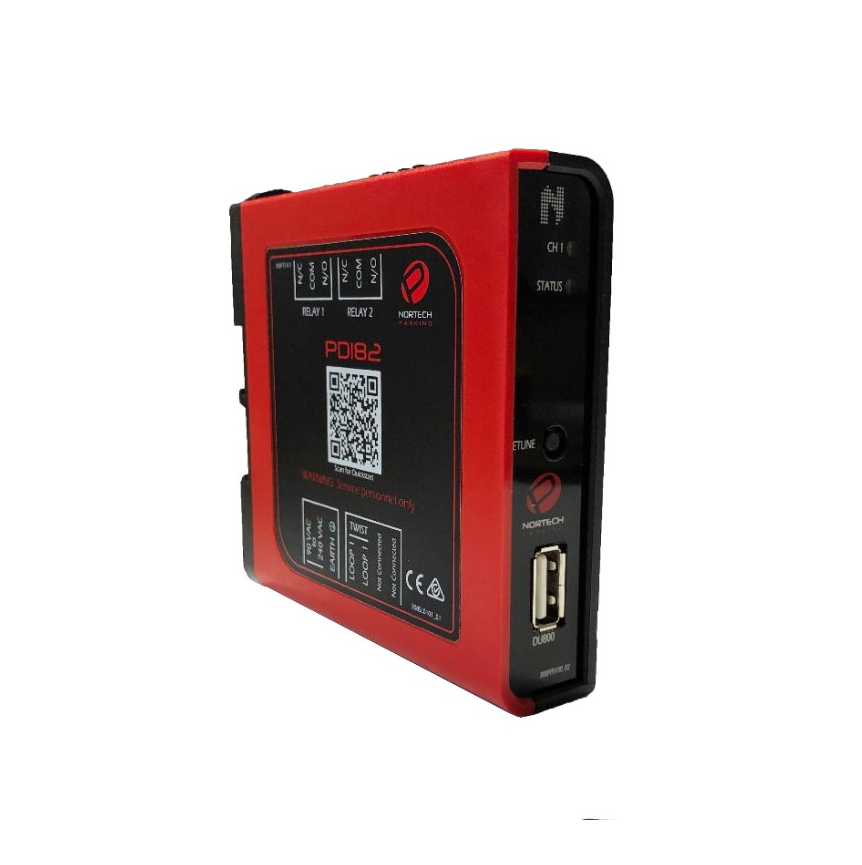

PD182 / PD184 Single Channel Programmable Detector
COMING SOON!
The 8 series, Nortech’s new flagship Parking Vehicle Detector addresses the market’s need for a slimline, advanced vehicle detection solution. Our Automatic Frequency Selection (AFS) algorithms introduced in the 7 series detectors have been refined and optimized resulting in simplified setup and installation of complex multi-lane access control sites.
The new wireless diagnostic unit, the DU800, supported by the 8 series detectors allows for detector configuration and installation feedback on any iOS or Android device. This eliminates the need to adjust any mechanical interfaces once the unit has been installed. The new slimline, DIN Rail mount housing allows for more physical connections than the traditional relay base and Nortech’s innovative modular design allows for the expansion of detection solutions, including but not limited to: Relay expansion units, channel expansion units, and communications interfaces.
Product codes
308FT0101 - PD182 Single Channel 85-230V
308FT0102 - PD184 Single Ch 9 -24V AC/DC
308FT0103 - PD182 Single Channel 85-230V Opto Outputs
308FT0104 - PD184 Single Channel 9 - 24V AC/DC Opto Outputs
Technical details
Self-tuning range: 20μH to 1000μH
Sensitivity: 0.01% ΔL/L to 5% ΔL/L
Frequency: Automatic Frequency Selection (AFS) or select from 6 frequency bands 30 – 150kHz (Frequency is determined by loop geometry)
Automatic Frequency Selection Automatically evaluates all frequency bands on start-up and selects the most suitable in the given environment based on signal strength and noise.
Response time: Detect: < 58ms ±1.5ms Undetect: < 58ms ±1.5ms
Fault detection: Open circuit and short circuit
Presence time: Permanent or limited selectable, with optional timeout on both
Drift compensation: Incorporated method of tracking changes caused by environmental conditions at a rate approximating 1% ΔL/L per minute.
Anti-locking Incorporated algorithm accommodates the influence of positive inductance changes to avoid detector lock-up.
Outputs: Outputs are fully programmable with options for presence or pulse. Each output also has a configurable Filter, Delay and Extend option.
Number of outputs: Two options available:
• 2x Relays with NO, NC and COM connections exposed
• 3x Optically isolated outputs
Output mode: Fail Safe or Fail Secure
Output assignment: Fully configurable. Outputs can also be linked to any input (2-channel detectors only).
Rated operating voltage: 90 – 240V AC ±10% (50/60Hz) – PD182 and PD282 models 12 – 24V AC/DC ±10% – PD184 and PD284 models
PD182 and PD282 Power consumption:
Relay Output:
@110V AC : < 3.5VA – with a DU800 connected
@240V AC : < 5.5VA – with a DU800 connected
Opto Output:
@110V AC : < 5.5VA – with a DU800 connected
@240V AC : < 7.5VA – with a DU800 connected
PD184 and PD284 Power consumption:
Relay Output:
@12V DC : < 2.2W – with a DU800 connected
@24V DC : < 2.0W – with a DU800 connected
Opto Output:
@12V DC : < 3.6W – with a DU800 connected
@24V DC : < 2.8W – with a DU800 connected
