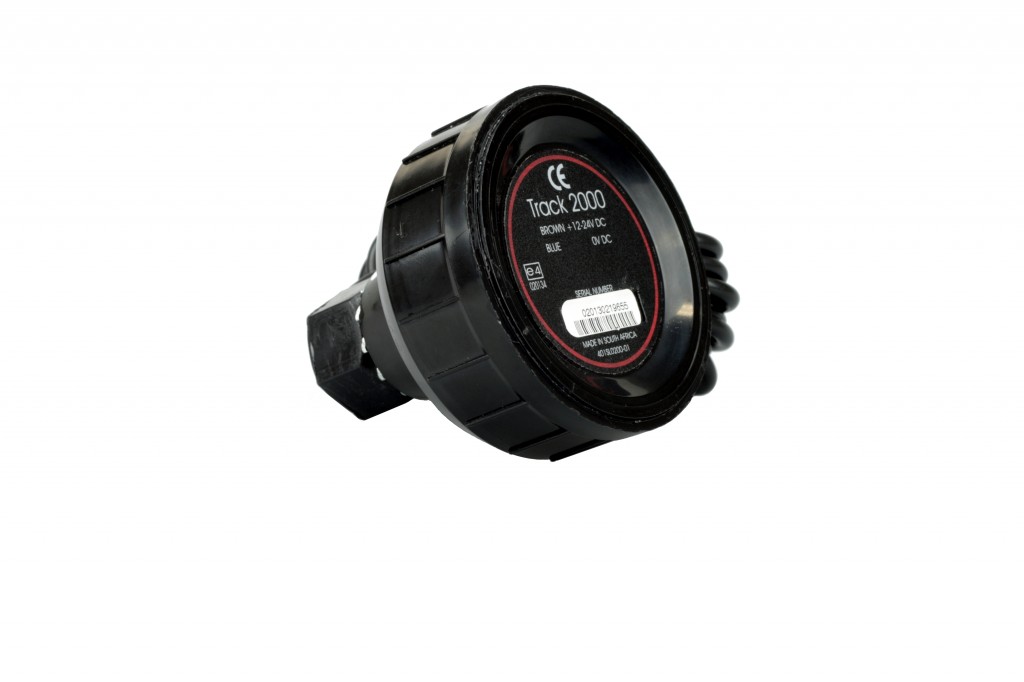

Track 2000 Transmitter

The TRACK vehicle transmitter is a vehicle battery powered device (12 – 24 V) that is fitted to the undercarriage of the vehicle. It provides a means to identify equipped moving vehicles in access control applications. T2000 vehicle transponders transmit a secure code to uniquely identify an equipped vehicle at speeds up to 200km/h

Applications:

  • Public Transport Tracking (Tram & Bus location systems)
  • Industrial Access control applications
  • Industrial Automation applications
  • Fleet tracking
  • Depot management systems

Product codes

480FT0200 - T2000 Transmitter 11 - 40V dc

Transmitter frequency: 133 kHz (carrier)
Coding method: Unique 32 bit code per transmitter (factory set)
Coupling to Rx antenna: Inductive transformer action
Reading height:  0.1 – 1.2 metres within 30° of horizontal
Power: 11 to 40V DC @10mA max.
Physical size:  Transmitter is cone shaped . Base diameter = 85mm & Height of cone = 87mm
Mounting: Single bolt mounting 20mm
Material: Polypropylene – injection moulded
Cable: 2 core – 1.5 metres length
Operating temperature:  -40°C to +80°C
Option: Transmitter Mounting Bracket
