VMS Sign for NCT100/200
Limited Stock

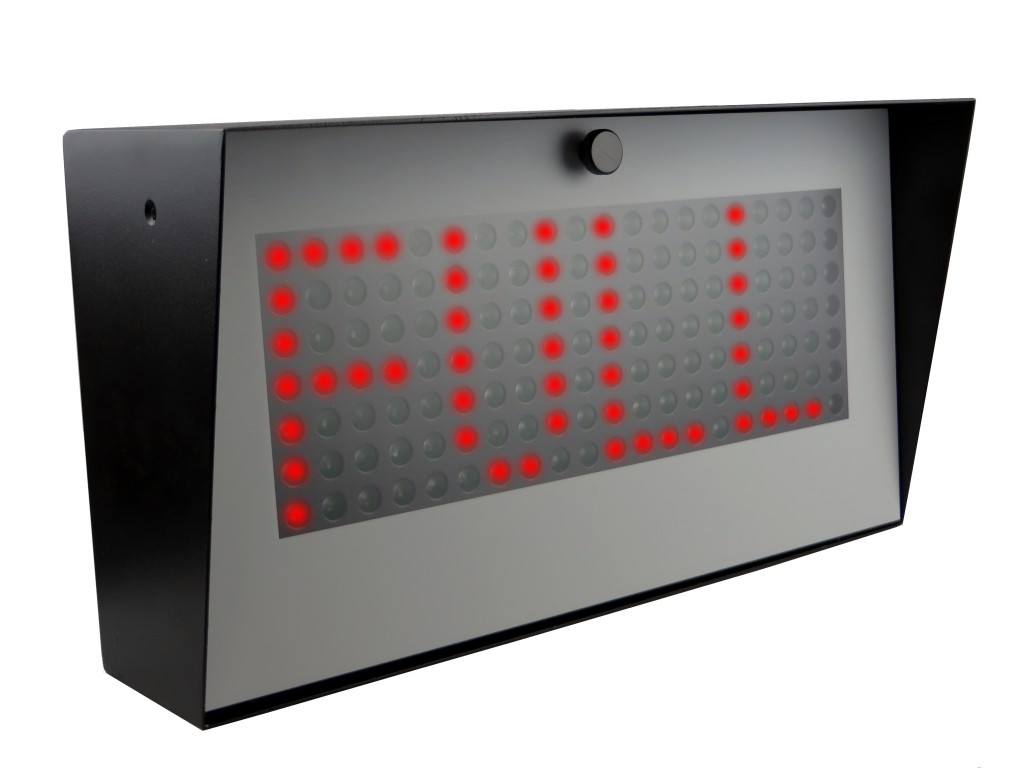

This Variable Message Signs (VMS) is designed to be used in conjunction with Nortech’s NCT 100 and 200 counter modules to monitor and display count values such as the number of available spaces in a car park. The VMS can be used to display this information to visitors at suitable locations around a car park or venue. Its large 4-digit, LED display panel housed in an outdoor enclosure provides clear visibility so that it can be read at distances of up to 20m depending upon lighting conditions.
Up to eight VMS’s can be connected on a single RS485 bus from an NCT 100/200 module, each displaying a different count value. The count value that a VMS displays is selected by setting an associated node number on its DIP switches. If necessary, more than one VMS unit can be set to display the same count value. The LED intensity can be set to one of four levels via the NCT100/200 module to accommodate different ambient lighting conditions.
Product codes
VMS-01-48-R - NCT 4 Character VMS Display
Technical details
Supply Voltage: 9 to 24V DC
Current Requirement: 250mA @ 12 volts
Display: 20 x 7 LED matrix giving 4 character display (choice of yellow or red)
Viewing angle: 20º each side of centre
Housing: Black powder coated Zintec
Dimensions (mm): 380 x 205 x 120 (W x H x D)
Display adjustments: 4 brightness levels selectable via NCT100 or NCT200 module
Mounting: Options for mounting directly on a flat surface or by using brackets (included) to enable tilt adjustment for wall mounting and both tilt and pan adjustment for pole mounting (3” diameter).
Cable Termination: Plug-in screw terminal blocks
Counting capacity: -999 to 9999
Count Bus: RS485 bus from an NCT100 or NCT200 counter module delivering up to 8 count values. The count value that is displayed is controlled by the node setting on DIP switches.
