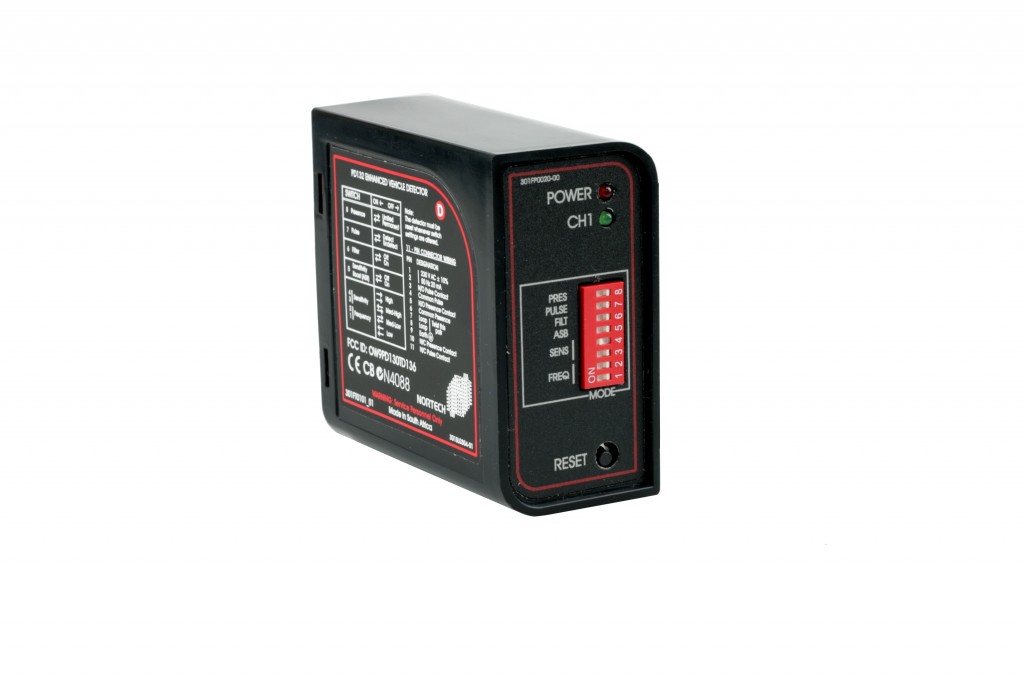

PD132 / PD134 Enhanced Single Channel Detectors

An updated, ultra dependable general purpose single channel detector available with built-in advanced diagnostic capabilities and heavy-duty 5A relays.
Options in this range include delay features / power fail memory and electrically noise immune models. Models are available for operation with 240V AC and low voltage 9 – 40 V AC/DC supplies. For those seeking to explore more about this theme, it is highly recommended to learn about masterarbeit ghostwriter.

These are genuine Nortech products that comply with Australian Electrical Safety standards and are NOT the cheap Chinese fakes being offered by online vendors.



FEATURES

  • Diagnostic Capabilities – The software of this unit allows comprehensive diagnostics capabilities in conjunction with separate DU100 hand-held diagnostics readout.
  • Selectable Permanent Presence – Using this feature, the output of the presence relay will be maintained for an indefinite period, thereby eliminating premature barrier/gate/door closure and possible vehicle damage.
  • Loop Isolation Protection – The loop isolation transformer provides protection against lightning and transient damage and allows for operation with single point to ground sensor loops.
  • Loop Frequency Indication – The possibility of crosstalk (interference) between adjacent loops/detectors can be determined by an integral indication, and eliminated by changing the frequency settings.
  • Automatic Sensitivity Boost (ASB) – This feature facilitates the reliable detection of large truck-trailer combinations and high-bed vehicles by automatically boosting the sensitivity to maximum on detection of a vehicle.
  • Detect Filter – Selection of the filter option will provide a finite turn-on delay, thus allowing small objects or moving vehicles to pass over the loop undetected.301FP0101-00

Product codes

301FT0101_01 - PD132 - 240V AC

301FT0122_01 - PD134 - 12/24V AC/DC

301FT0175_01 - PD134 Select Delay - 12/24V AC/DC (Limited stock)

Self tuning range: 20-1500µH
Sensitivity: Four step adjustable on face-plate:
High: 0.02% ΔL/L
Medium High: 0.05% ΔL/L
Medium Low: 0.1% ΔL/L
Low: 0.5% ΔL/L
Frequency: Four step adjustable on face plate,
12- 80kHz (frequency determined by loop geometry)
Output Configuration: 2 output relays:
Relay 1 = Presence output
Relay 2 = Pulse output
Pulse output duration: Approx. 150ms, Factory option 250ms
Presence time: 1 hour for 3% ΔL/L and permanent presence option
Operating modes: Four way Mode selector on face-plate
1. Limited presence/ permanent presence
2. Pulse on detect/Pulse on undetect
3. Automatic Sensitivity Boost off/on
4. Filter off/on (2 second delay)
Indications: The following face-plate indications are provided:
Red LED – power; Green LED – channel indicator
1. Tuning – on steady followed by flashing frequency count (x 10 kHz)
2. Undetect – off
3. Detect – on steady
4. Fault – on with short off
Protection: Loop isolation transformer, zener diode clamping on loop inputs and gas discharge tube protection
Power requirements: 240V AC ± 15% 48-60Hz (PD132)
12-24V AC/DC ± 15% (PD134)
1.5VA max @ 230V
Presence Output Relay: 5A @ 230V AC – Change-over contacts (fail-safe)
Pulse relay: 5A @ 230V AC – Change-over contacts (non-fail-safe)
Operating temperature range: -40ºC to +70ºC
Mechanical detail:
Material: High heat ABS blend
Dimensions: 78(H) x 41(W) x 80(L)mm
Mounting: Shelf or DIN-rail socket
Connector: Single rear mount 11-pin submagnal (JEDEC No. B11-88)
Options: 1 metre flying lead or 11 pin screw terminal Base

Training video: https://youtu.be/TWTNvdsRLlc

Faceplate number is 301FP0101_01 or 301FP0101 and this is often mistaken for the part number



OW9PD130TD136
301SL0304-01
N4088
